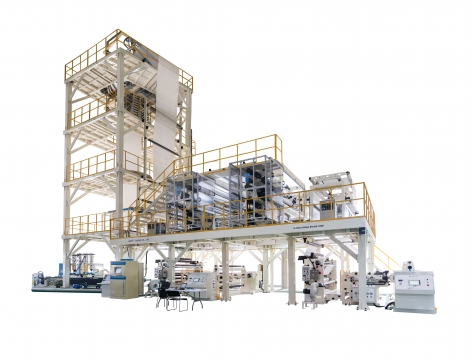

Blown Film Machine

Characteristic
For the production of breathable film by blowing and stretching method
Supplying Korea made World best Raw material,
Products & Packaging machinery/plant to Global market
We reject unauthorized collection of e-mail addresses.
Please note that unauthorized collection of e-mail addresses posted on this website using e-mail collection programs or other technical devices is prohibited, and violations of this will result in criminal penalties under the Information and Communication Network Act.
For the production of breathable film by blowing and stretching method
Breathable film application
- Hygienic products
- Baby diapers
- Diapers for adults
- Sanitary napkins
- Medical disposable garment
- House wrap film
Film requirements
- Formation of micro pores
- Improved flatness
- Low elasticity
- Improved tear and puncture resistance
- Less elongation in MD
- Good printability
• Final web width 1700~2200mm
• Extruder combination 90/120/90E
• 3-Layers Spiral die Ø400~450mm
• Auto-profile control Air ring
with measurement system
• Internal bubble cooling system
• Rotating haul-off unit
• In-line MDO unit
- 3 Heating rolls (Max. 120°C)
- 3 Stretching rolls(Two step stretching)
- 3 Annealing rolls, 2 Cooling rolls
• Dual winding system
• Extruder combination
- 90/120/90E (3 Layers)
• Melting capacity (Out-put)
- 120E Max. 400Kg/h
- 90E Max. 250Kg/h
- Total Out-put: 900Kg/h
• Throughput controlled with
Loss in weight dosing system
